PRICE ON REQUEST!

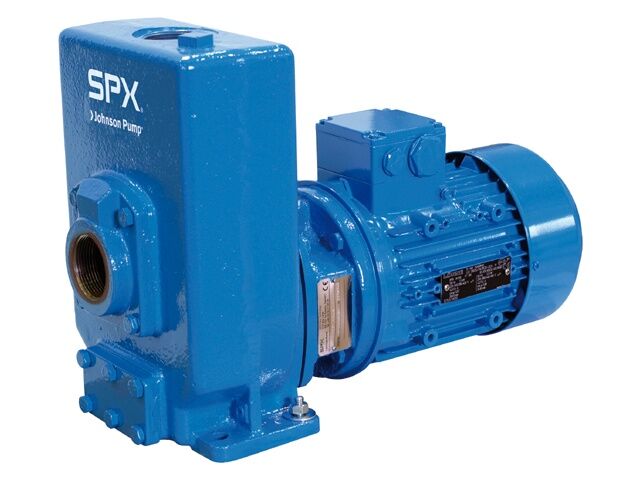

Well-known and reliable self-priming pump for waste water. Can be used as a bilge pump, deck wash pump, fire pump, etc.

Type: KGEF
Color: Blue
Pump type: self-priming centrifugal pump
Type of impeller: open impeller or closed impeller
Type of motor: short-circuit armature motor at 400 volts
Fuse: not built-in
Shaft seal: mechanical seal of ceramic on carbon
Impeller material: cast iron (bronze)*
Pump housing material: cast iron (bronze)*
Pump shaft material: chrome steel
Liquids: contaminated liquids, such as water, seawater, diesel oil, gas oil, fuel oil, etc. (maximum temperature +95°C)

At 10 meters: 52,000 liters per hour
At 15 meters: 44,000 liters per hour
At 20 meters: 34,000 liters per hour
At 25 meters: 24,000 liters per hour
At 30 meters: 8,000 liters per hour
Type of impeller: open impeller made of cast iron
Connections: 2.1/2″ female thread
Dimensions: lxwxh = 583 x 247 x 380 mm
Weight: 80 kg
Amperage: 8.1 A+
Shaft power: 4.0 kW, 5.5 hp, 2850 rpm

* Available to order.
* As well as whole NI resist.
* When commissioning the pump, always check the amperage on the nameplate of the electric motor, small deviations between different motors are possible.
