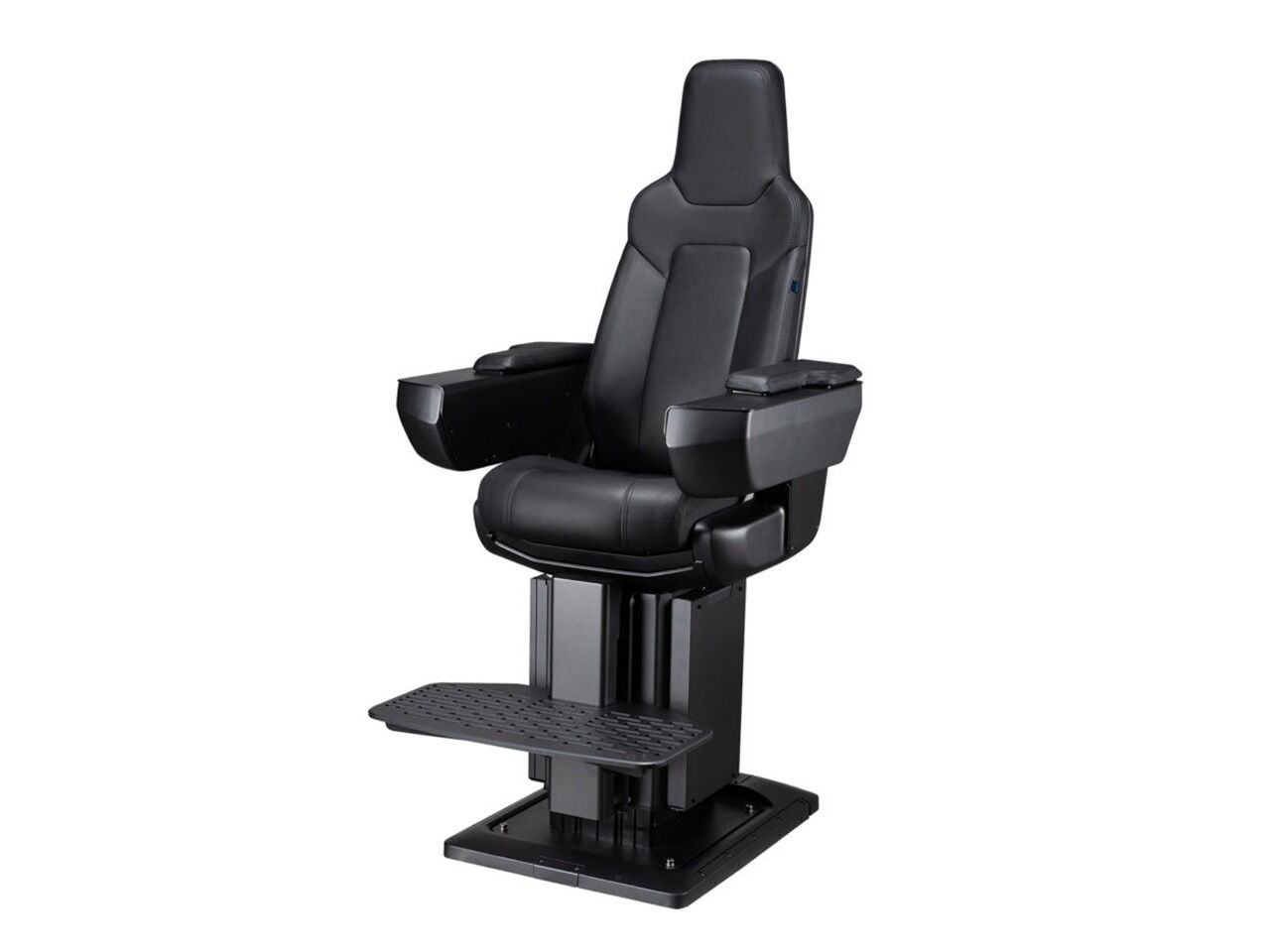

The NorSap 4000 is a large modular platform that offers endless options and combinations. The new electrical “plug and play” system ensures safe and user-friendly maintenance. The design allows full integration of customer specific controls and equipment to ensure long term operation.

The NorSap 4000 series meets the strict ergonomic requirements of the NORSOK regulations. The seats are designed according to the ISO7250 standard, so that 90% of all users sit comfortably in the seat. Equipped with "Quicksize" system which ensures that all seven electric motors can simultaneously adjust the seat in three preset positions. In this way, after a shift change, the chair is in the desired setting in no time and the user can also fine-tune each setting separately.

Optionally also available with a “NorSap Personal Memory” panel, which means that the chair is in the correct setting for each user at the touch of a button.
If necessary, easily exchangeable cushions.

Equipped with fixed XL column, aluminium back and medium armrests.

Column: 310 x 345 mm
Seat width: 45 cm
Seat depth: 55-58 cm
Back height: 85 cm
Dimensions: WxLxH = approx. 81 x 75 x 108 cm

Standard H = manual
Adjustable E = electric

Sitting inclination E:
Seat length E:
Chair slide E:
Footrest E: foldable and height-adjustable
Rotatable E:
Backrest E: fully foldable (90 degrees)
Armrests H: foldable and upholstered
Column: fixed height

Cable entry: possibility of passage of cables through armrest, chair and column
Upholstery: heavy duty black leather, other colors or fabric on request

Folding armrests: Optional
Upholstery: Leather
Colour black
Lumbar support: Optional
Norsap type number: 8940
Undercarriage: Yes
Back height: 850
Backrest: Electric

Total width: 810
Total depth: 750
Interchangeable seat cushion: Optional
Seat width: 450
Seat depth: 550-580
Seat height Max.: 700
Seat tilt: Electric
Seat length: Electric
