These pumps are applicable for the transport of slightly viscous and lubricating liquids without solid or abrasive components, such as light lubricating oil, spindle oil, preheated greases, etc.

NO gas oil!

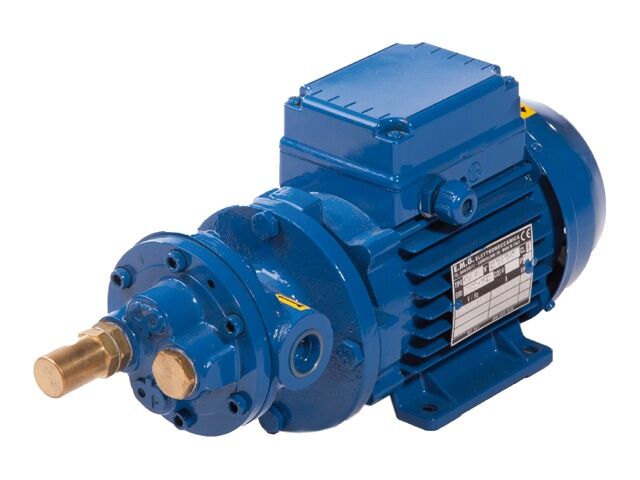

Type: GEAR
Color: Blue
Special feature: built-in safety valve (maximum 10 bar), NOT ADJUSTED
Type of pump: gear pump, limited self-priming
Impeller type: gears
Type of motor: 230 V induction motor
Fuse: NOT built-in
Shaft seal: mechanical seal of carbon on carbide
Material gears: steel*
Pump housing material: cast steel*
Pump shaft material: hardened steel*
* Available in bronze or stainless steel for the food industry

Fluids: clean lubricating oil and neutral, slightly viscous fluids with lubricating properties, maximum 140°C
Viscosity: maximum 20 Engler
Viscosity: has a very large influence on capacity, max. 20 Engler
Capacities: measured with water
Suction height: dependent on viscosity
Grain size: nil
Dimensions: lxwxh = 460 x 200 x 245 mm
Weight: 18 kg
Amperage: 230 V, 5.7 A / 400 V, 2.0 A
Shaft power: 0.75 kW, 1 hp, 1400 rpm
