Deck wash pump and bilge pump for commercial shipping, large pleasure craft and coastal shipping, also suitable for sprinkling, irrigation, drainage and as a coolant pump for industry.

Pump type: Dry installation: self-priming
Protection class: IP68
ATEX: Yes / No
Voltage: 230V / 400V
Voltage: Alternating voltage
Frequency: 50 Hz
Suction height: 7.0 m
Press pipe diameter: 1.1/2″
Suction pipe diameter: 1.1/2″
Medium: Water
Grain size: 9 mm
Max. delivery head: 19.0 m
Fuel: –
Float switch: –
Free range (L/hr): 19500
Capacity 5 meters (L/hour): 19500

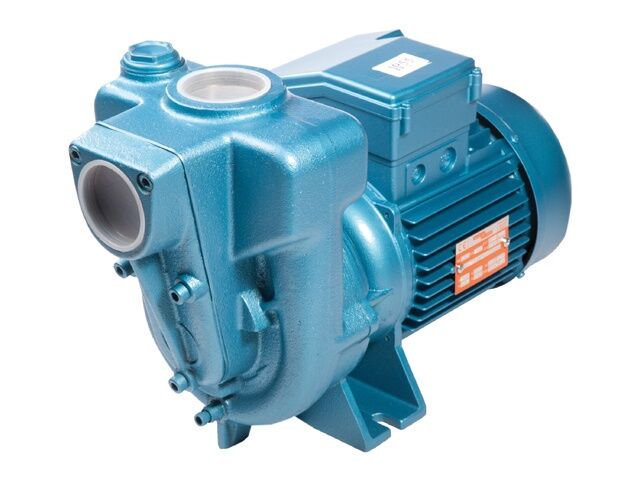

Type: 01½RA-M
Color: Blue
Type of pump: self-priming centrifugal pump (1″ model limited self-priming +/- 2 meters)
Impeller type: open impeller
Type of motor: induction motor at 230 volts
Fuse: only built-in thermal protection on the 230 volt motors
Shaft seal: mechanical seal of ceramic on carbon with elastomers of neoprene or Viton (for gas oil)
Impeller material: cast iron
Pump housing material: cast iron
Pump shaft material: stainless steel AISI 420
Liquids: contaminated water, seawater, etc. maximum temperature 90°C
Insulation class: IP55

At 10 meters: 16,200 liters per hour
At 15 meters: 9,000 liters per hour
Connections: 1.1/2″ female thread
Dimensions: 426 x 190 x 283 mm
Weight: 24 kg
Amperage: 230 V: 6.2 A
Shaft power: 0.75 kW, 1 hp, 2800 rpm
