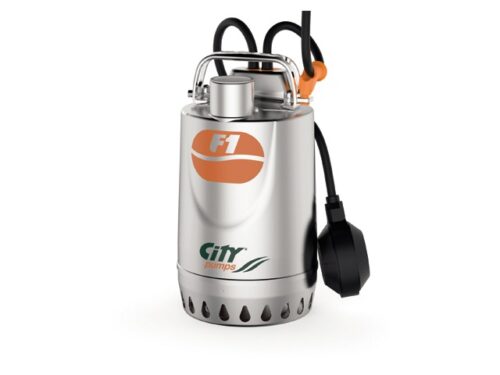

Robust tubular pump made entirely of stainless steel, very suitable for shipping, construction and industry. The ideal bilge and ballast pump.

Pump type: Submersible pump
Float switch: Yes / No
Press pipe diameter: 1.1/4¨
Suction pipe diameter: –
Medium: Water
Grain size: 10 mm
Max. delivery head: 7.5 m
Voltage: 230 V
Voltage: Alternating voltage
Frequency: 50 Hz
Protection class: IP68
ATEX: No
Vrije uitloop (L/uur): 10800
Capaciteit 5 meter (L/uur): 3600

Type: F1
Colour: stainless steel
Pump type: fully submersible centrifugal pump
Impeller type: open impeller
Motor type: dry motor, IP68, Class F
Fuse: built-in thermal protection only with 230 volt version
Shaft seal: mechanical seal of carbon on ceramic with oil chamber and additional lip seal on motor side
Immersion depth: 10 meters maximum
Impeller material: stainless steel 304
Impeller housing material: stainless steel 304
Motor housing material: stainless steel 304
Pump shaft material: Stainless steel EN 10088-3, 1.4104
Liquids: slightly contaminated water and water with a slightly higher acidity, continuously at a temperature of 50°C (maximum 3 minutes +90°C)

At 2 meters: 8,400 liters per hour
At 4 meters: 5,040 liters per hour
Pumps up to: 14 mm (without float only)
Grain size: 10 mm, no sand or gravel
Connection: 1.1/4″ female thread
Dimensions: diameter 147 mm, height 225 mm
Weight: 4.7kg
Amperage: 1.3 A
Shaft power: 0.25 kW, 0.33 hp, 2900 rpm
Cable: 10 meters of neoprene H07RN-F with earthed plug and plug connection on the pump side
